The ROQ NEXT operates on the mega efficient and silent Chain Drive, with a 20% boost on efficiency over the ROQ YOU.

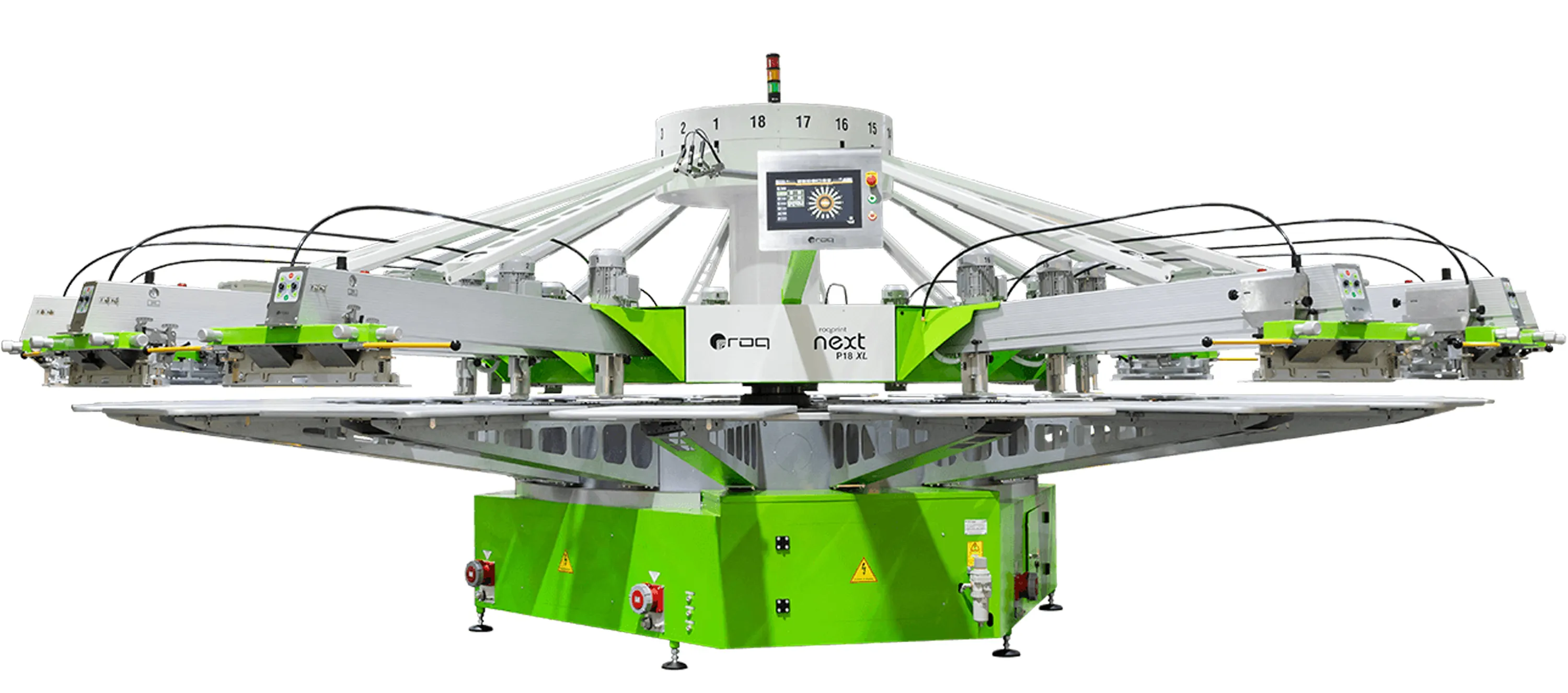

The ROQ NEXT XL operates on the super quiet and mega efficient Chain Drive taking your output up to 1,100 pieces per hour without any hassles. With independent lift on all printheads to the hefty print area of 20x28" as a standard, and the ability to double index and hit 33x39" prints, the NEXT is the happy medium between the baseline ROQ YOU and the lux ROQ ECO. The dual-chain drive system enables 'Go-To' platen functionality for simple registration with printing on-demand from the comfort of the LCD screen with even faster indexing for fast, quality printing. QC your jobs faster than even with the Half Index feature and whip the press from side to side to spot check those prints in between. The NEXT is ROQ Hybrid Digital compatible at a P18+ for ultimate offerings and versatility in your production. The ROQ NEXT comes in standard and scalable configurations to meet your operations needs. The NEXT configurations goes from 4x8, 6x8, 6x10, 8x10, 8x12, 10x12, 10x14, 12x14, 12x16, 14x16, 14x18, 16x18 and even higher depending on the customizations needed for your shop!

Number of Colors (min): 4

Number of Colors (max): 20+

Number of Pallets (min): 8

Number of Pallets (max): 22+

3 Communication Ports

Maximum Print Size: 20x28" or 33x39" Double Index

Maximum Frame Size: 25x36"+

Maximum Production Speed: 1,100+/hr

Air Compressed Consumption: 21 - 58 CFM Depending on Configuration

Maximum Consumption: 7 - 30 Amps 3 Phase, or, 9 - 41 Single Phase - Depending on Configuration

Diameter: 13.5' - 22.6'+ Depending on Configuration

Minimum Width of Base: 6.9'

ROQ Hybrid Digital Compatible @ P18+

Power in Numbers

1,100 / Hour

Pieces per Hour




Print Area
